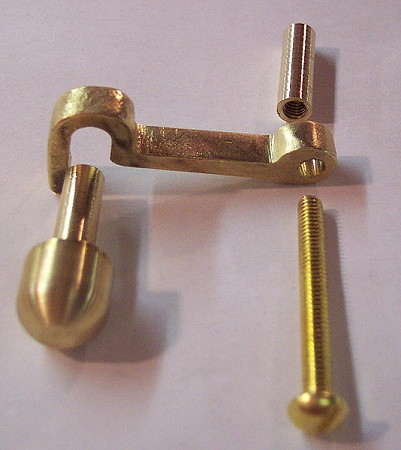

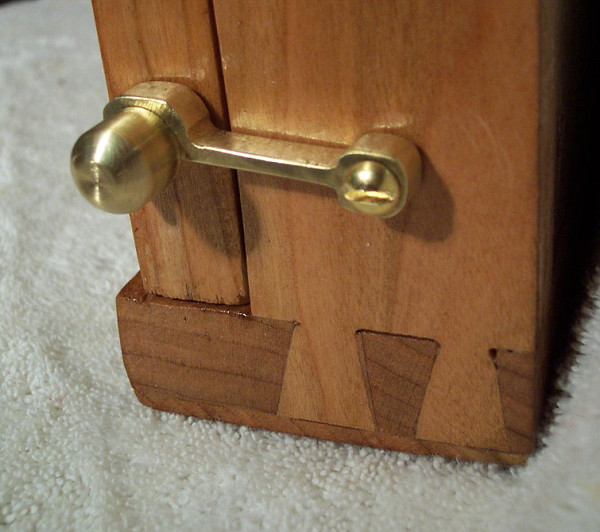

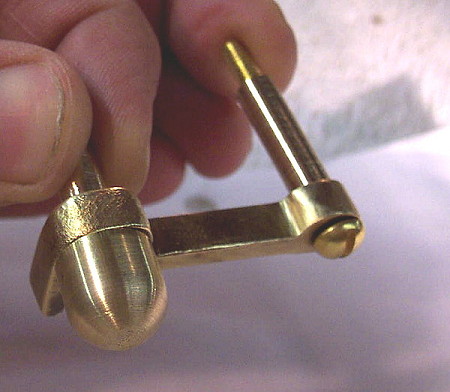

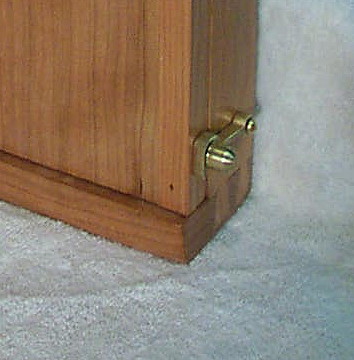

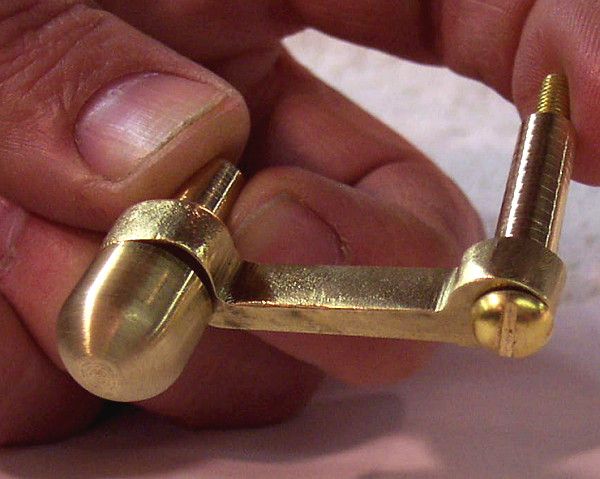

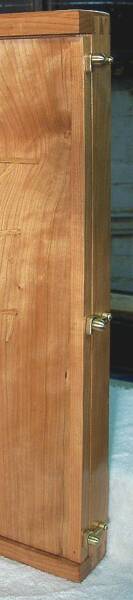

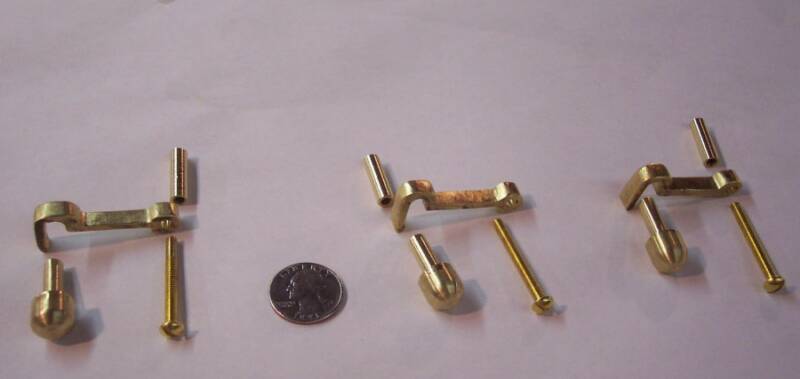

I made three sets of fastening hooks and handles for the cabinet.  The hooks were milled out of 1/4" thick brass stock. The handles and the threaded inserts were turned out of  1/2" diameter brass stock.  The inserts are turned down to 1/4"  OD  and tapped for an 8-32 screw.  The handles are rounded off on the out side end and turned down to 1/4' diamter on the "latching" end.  The threaded inserts and the  handles are press fit into 15/64 holes drilled into the cabinet.

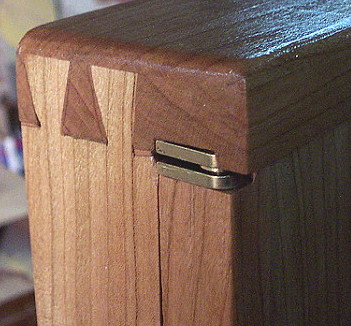

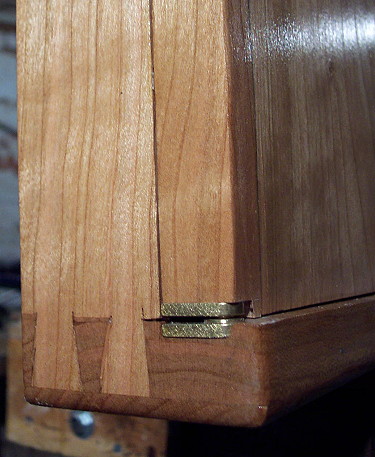

The  exterior cabinet door is mounted with Brusso Offset Pivot Hinges
