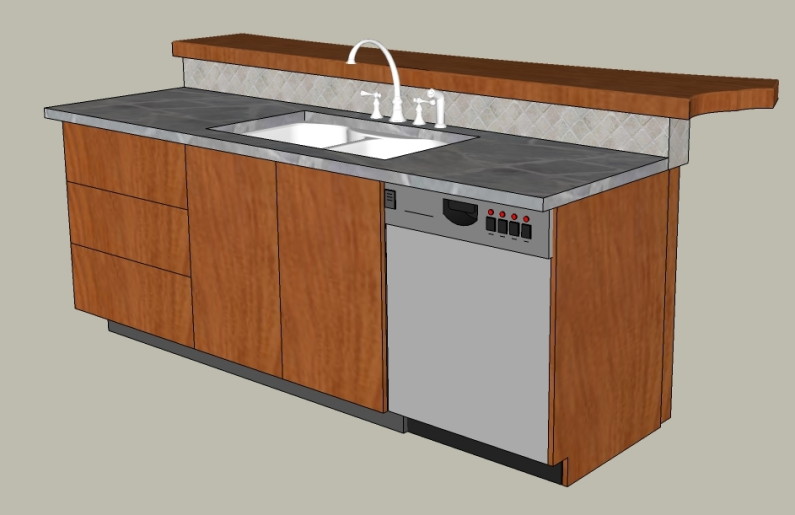

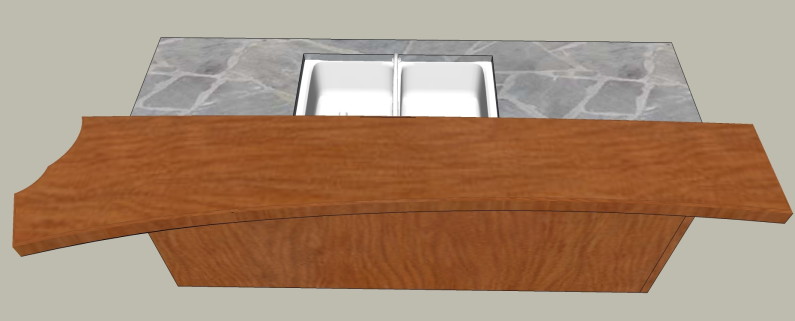

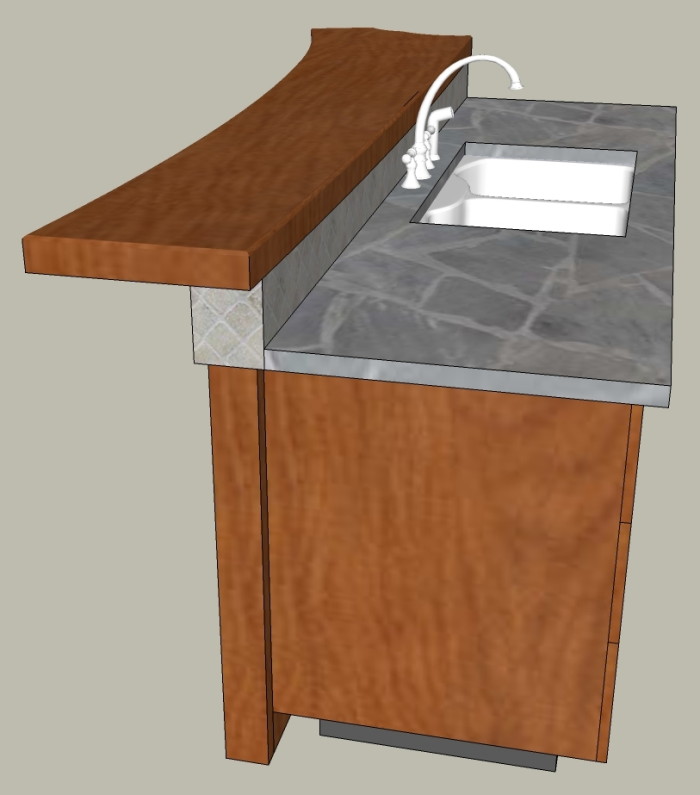

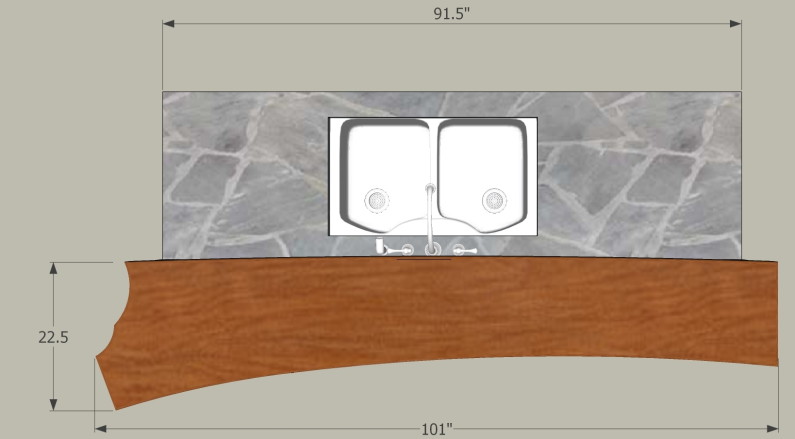

Here is a 3D modeling of the Cherry Slab.

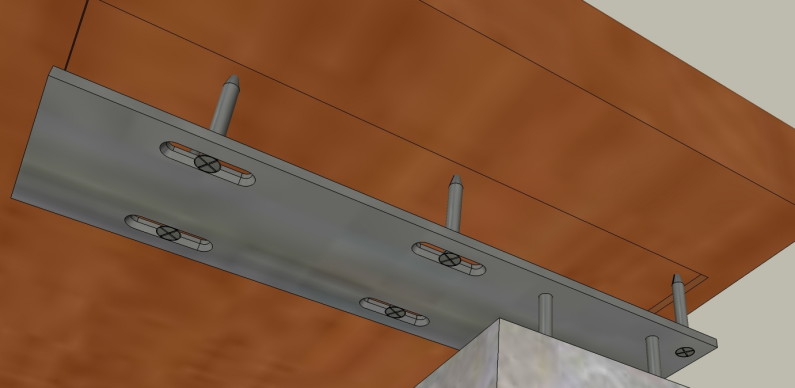

Here is a steel plate designed to allow the Slab to be mounted to the Wall.
The four downward screws fasten the plate to the Wall. The six up ward screws fasten the plate to the Slab.

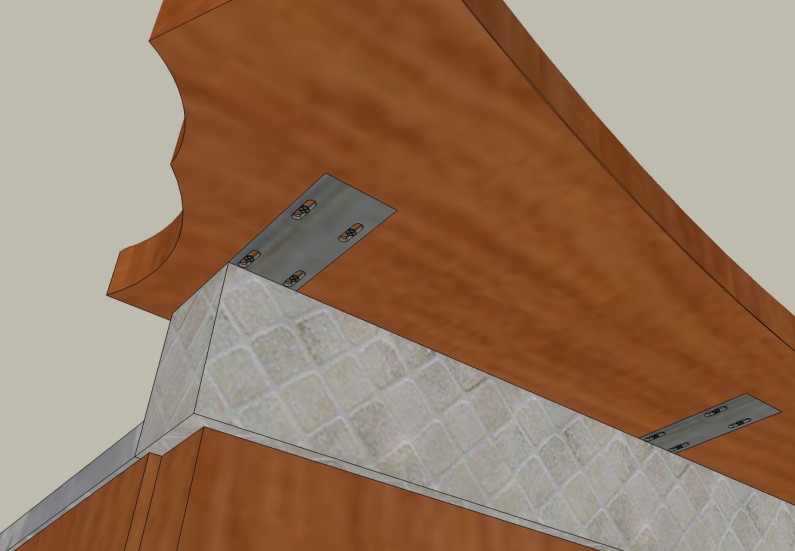

The bottom side of the Slab has routed areas so the plates can reside flush inside the Slab.
The bottom side of the Slab has routed areas so the plates can reside flush inside the Slab.
There are elongated slots in the plates to allow the Slab to expand and contract.
