TOP PIECE

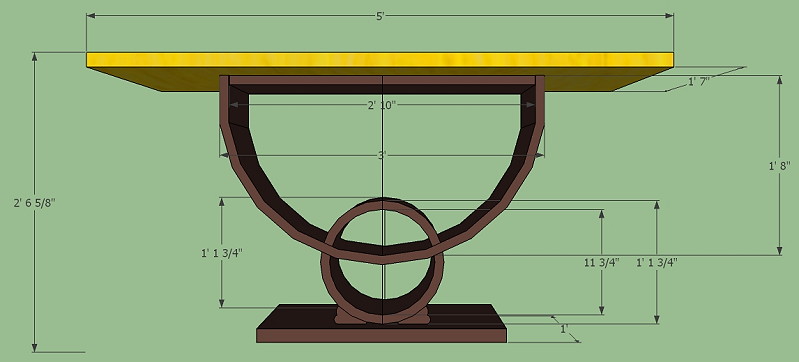

length = 60
height = 30 5/8
thickness = 1.5
depth = 19
SUPPORT OF CIRCLE
max distance at base (bottom of supports) = 11 13/16
max distance touching circle (top of supports) = 9.5
height of supports at their highest = 1 7/8
depth = 8 3/8
gap between supports = 2.25
The gap is filled and painted.
U-SHAPED PIECE
width = 36 (outer dimension)
depth = 8.5
thickness = 15/16
*There is a support piece inside the u. It is 34 and also 8.5
CIRCLE PIECE
OD = 13.75
thickness = 15/16
ID = 11 7/8
depth = 8
BASE PIECE
length = 27
depth = 12
thickness = 1.5
Circle-U Art Deco Table
Top-Maple(Bird's Eye or Clear)
Base-Black Lacquer

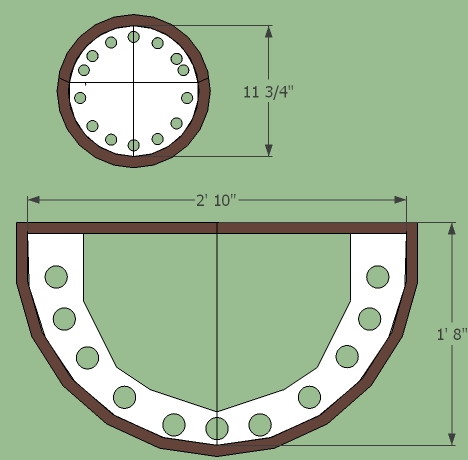

The first step in fabrication is making the forms for the U and the Circle. Several years ago I made some tables that wrapped around a 24" diameter support pole.

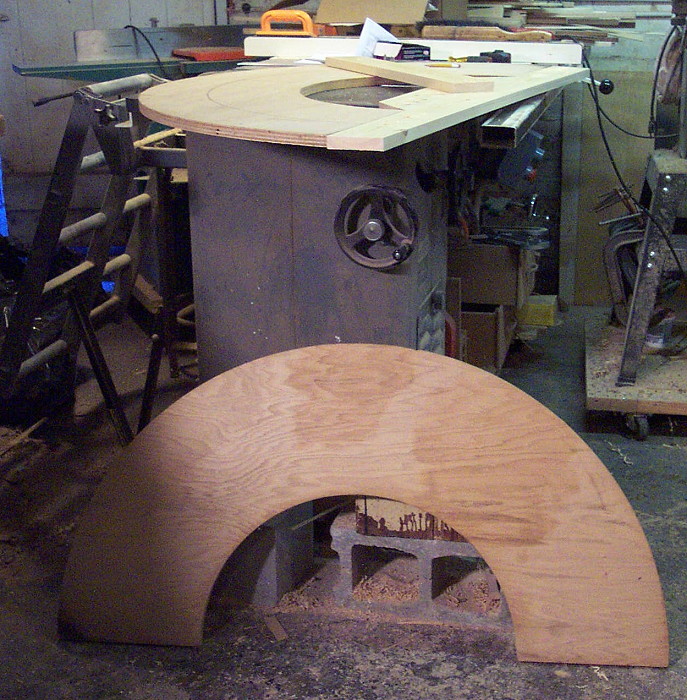

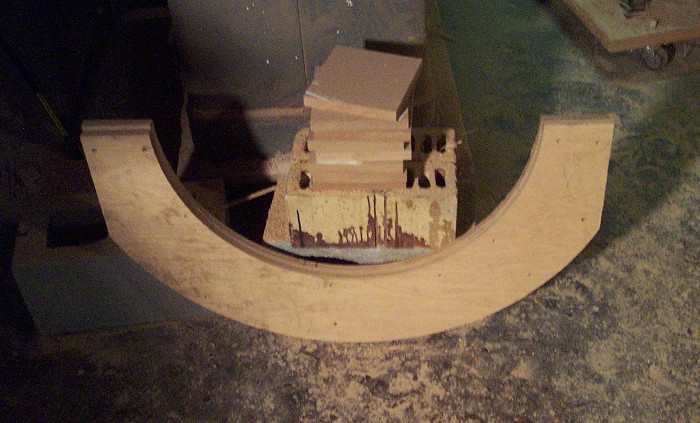

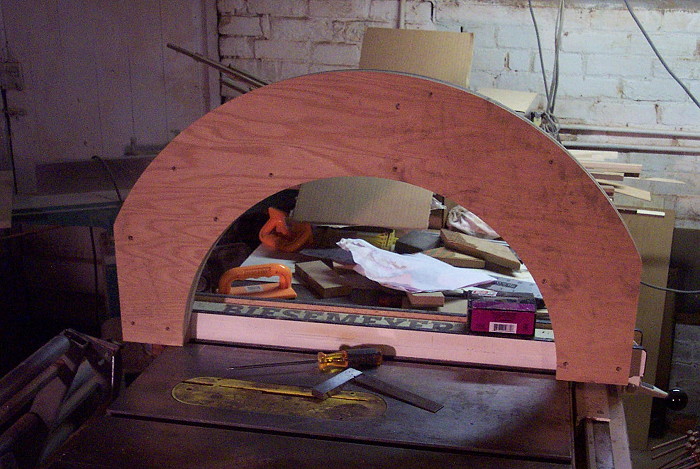

I had two of the semi-circles still in my shop. I used these to make the arches for the "U" lamination form.

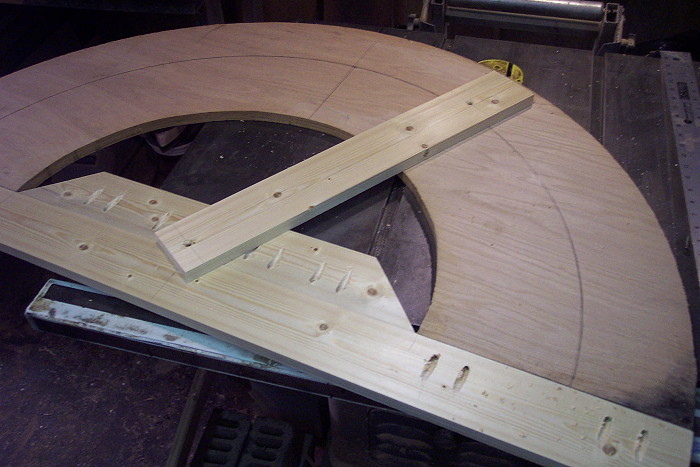

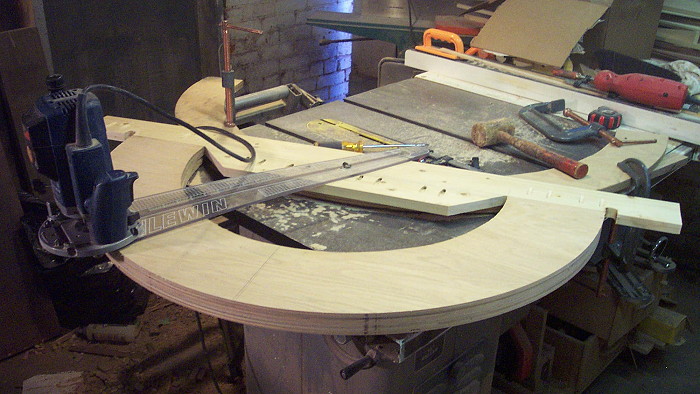

I built a jig to make the arch forms.

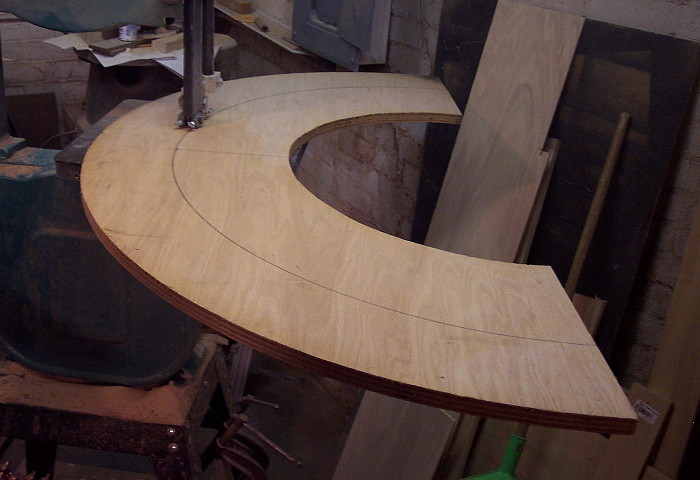

I cut the outline on the bandsaw-keeping the cut about 1/8th inch wide of the line.

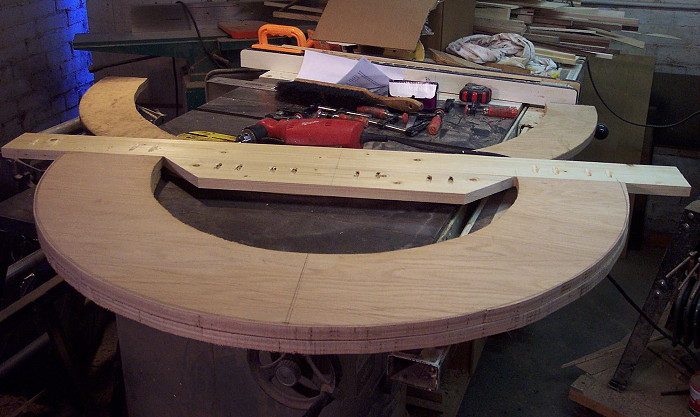

Then I screwed both roughed out semicircles together and reattached the jig.

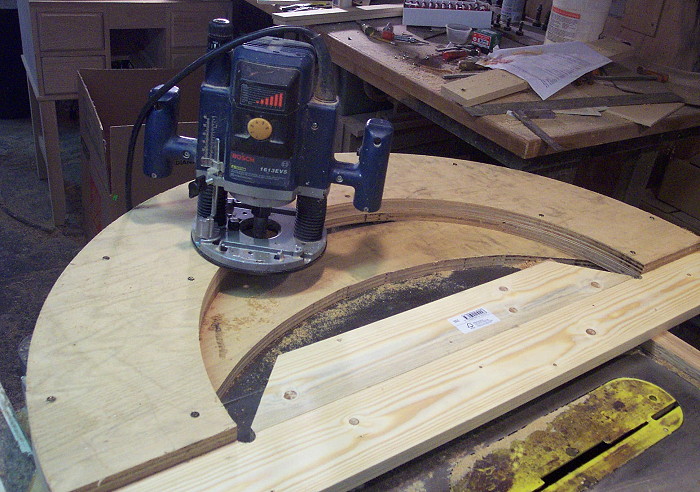

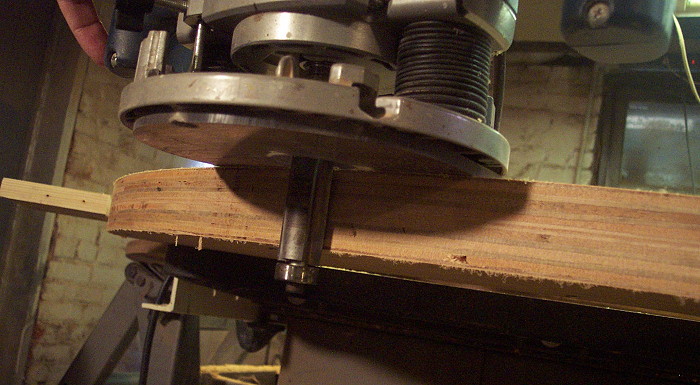

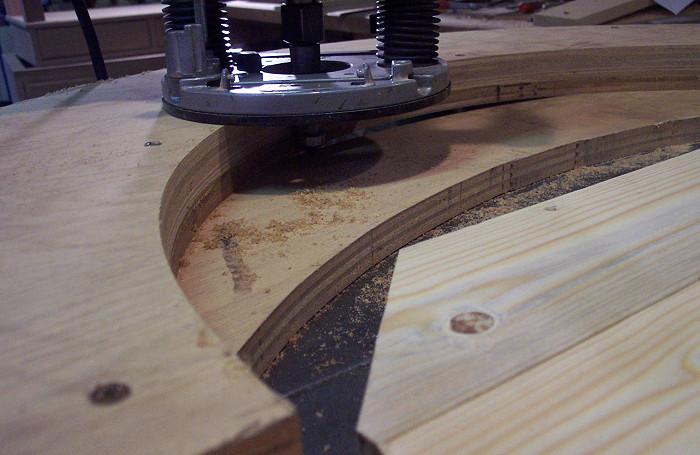

I routed the outside edges using a 2" pattern cutting bit.

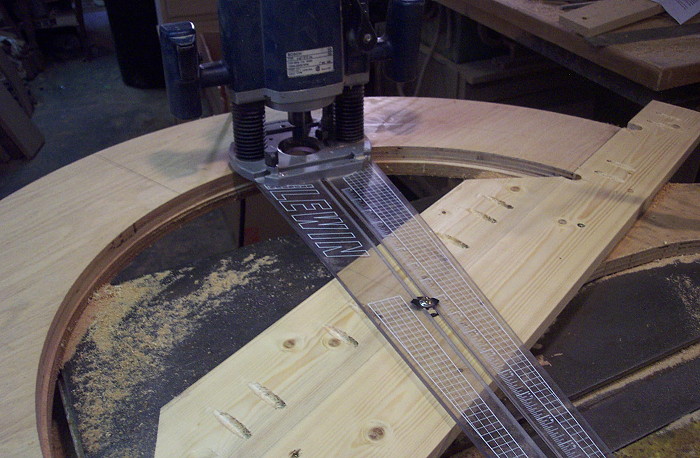

I changed bits and cut an inside edge.
A return to the 2" pattern cutting bit finished off the insde edge on both pieces.
Now for a whole lotta math-----To get the shape and size of the "U" I worked the top and bottom pieces to the middle. I knew the overall height had to be 30.5" As the base and the Top are each 1.5 inches thick I subtracted their combined thicknesses to get the available height space for the U/Circle combination. The resulting height space is 27.5" The smallest I could make the circle was 1" thick with a 12" inside diameter, and 14" outside diameter. To get the Circle to intersect the U at a pleasing location-The U" height has to be "21".Then I took the specified width of the top of the "U" which is 36" to make my arc I swung an 18" arc from the center of the top of the "U" to set the height of the U and then a second arc of 10.5" to set the outside width. At the point those to arcs intersect is where I trimmed the sides to get the "U" shape.
